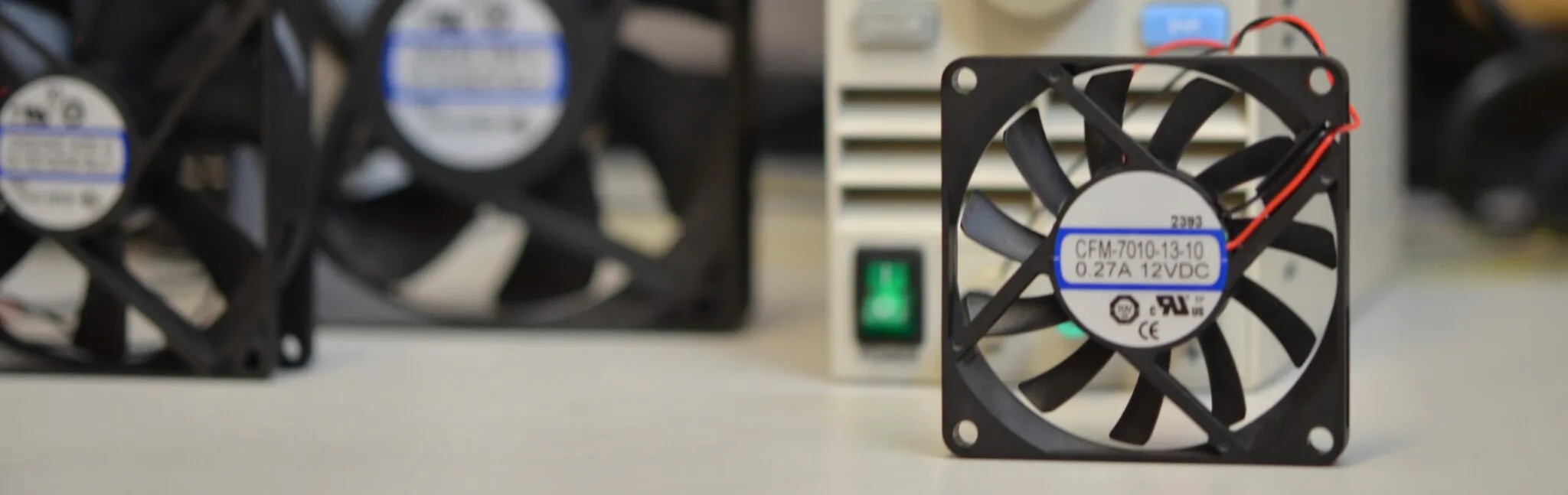

Ac Fans

Home / All Products / Thermal Management / Ac Fans

Filters | Reset All

Bearing Type

Ball

Sleeve

Reset

Air Flow at 50Hz (CFM)

Min

Max

44.69

51.94

68.2

71.38

72.07

78.04

78.57

133.23

149.33

162.04

164.5

Reset

Air Flow at 60Hz (CFM)

Min

Max

45.5

52.41

53.87

63.52

73.3

76.06

84.85

87.36

88.14

140.81

160.47

Reset

Rated Voltage (Vac)

110

220

Reset

Max Input Current (mA)

Min

Max

110

120

130

150

160

170

190

230

260

280

300

320

450

Reset

Tachometer Signal

Reset

Rotation Detector

Reset

PWM Control Signal

Reset

Length (mm)

120

172

Reset

Width (mm)

120

150

Reset

Height (mm)

Reset

Series

CAF-A2B

CAF-A2S

CAF-A7B

Reset

Product Release New Products

Purchase Buy Online at sameskydevices.com Normally Stocked in Distribution

Resources 3D Model Available PCB Footprint Available

Results 26

of 2

	Bearing Type	Air Flow at 50Hz (CFM)	Air Flow at 60Hz (CFM)	Rated Speed at 50Hz (RPM)	Rated Speed at 60Hz (RPM)	Noise at 50Hz (dBA)	Noise at 60Hz (dBA)	Rated Voltage (Vac)	Rated Power at 60Hz (W)	Rated Power at 50Hz (W)	Max Input Current (mA)	Tachometer Signal	Rotation Detector	PWM Control Signal	Length (mm)	Width (mm)	Height (mm)	Series
CAF-A238S-220-300	Sleeve	68.2	52.41	2200	1800	36.2	29.9	220	7.1	7.1	80	No	No	No	120	120	38	CAF-A2S
CAF-A238S-224-370	Sleeve	71.38	73.3	2400	2400	37.7	37.7	220	9.7	11.2	110	No	No	No	120	120	38	CAF-A2S
CAF-A225S-120-350	Sleeve	51.94	53.87	2000	2000	36.4	140	110	10.8	14.2	190	No	No	No	120	120	25	CAF-A2S
CAF-A225S-118-300	Sleeve	44.69	45.5	1800	1700	32.6	35.2	110	10.8	12.7	160	No	No	No	120	120	25	CAF-A2S
CAF-A238B-220-300	Ball	68.2	52.41	2200	1800	36.2	29.9	220	7.1	7.1	80	No	No	No	120	120	38	CAF-A2B
CAF-A225B-218-300	Ball	44.69	45.5	1800	1700	32.4	32.8	220	9.7	12.3	90	No	No	No	120	120	25	CAF-A2B
CAF-A225B-220-350	Ball	51.94	53.87	2000	2000	36.4	37.3	220	11.5	15.7	120	No	No	No	120	120	25	CAF-A2B
CAF-A238S-124-370	Sleeve	72.07	63.52	2400	2100	27.7	35.6	110	8.2	9.3	150	No	No	No	120	120	38	CAF-A2S
CAF-A238B-120-300	Ball	68.2	52.41	2200	1800	30	29	110	7.1	7.1	170	No	No	No	120	120	38	CAF-A2B
CAF-A225B-120-350	Ball	51.94	53.87	2000	2000	36.4	37.3	110	10.8	14.2	190	No	No	No	120	120	25	CAF-A2B
CAF-A225S-218-300	Sleeve	44.69	45.5	1800	1700	32.4	32.8	220	9.7	12.3	90	No	No	No	120	120	25	CAF-A2S
CAF-A238B-226-400	Ball	78.57	88.14	2600	2900	41	44.3	220	12.7	16	130	No	No	No	120	120	38	CAF-A2B
CAF-A751B-219-320	Ball	133.23	76.06	2000	1300	47.2	30.7	220	16	18.3	150	No	No	No	172	150	51	CAF-A7B
CAF-A238S-120-300	Sleeve	68.2	52.41	2200	1800	30	29	110	7.1	7.1	170	No	No	No	120	120	38	CAF-A2S
CAF-A751B-119-320	Ball	133.23	76.06	2000	1300	46.9	31.5	110	16	19	280	No	No	No	172	150	51	CAF-A7B
CAF-A238B-224-370	Ball	71.38	73.3	2400	2400	37.7	37.7	220	9.7	11.2	110	No	No	No	120	120	38	CAF-A2B
CAF-A238B-126-400	Ball	78.04	84.85	2600	2900	39.5	42.6	110	17.1	19.8	300	No	No	No	120	120	38	CAF-A2B
CAF-A238B-124-370	Ball	72.07	63.52	2400	2100	27.7	35.6	110	8.2	9.3	150	No	No	No	120	120	38	CAF-A2B
CAF-A225B-118-300	Ball	44.69	45.5	1800	1700	32.6	35.2	110	10.8	12.7	160	No	No	No	120	120	25	CAF-A2B
CAF-A751B-226-450	Ball	164.5	160.47	2600	2600	51.7	52.1	220	31	32.1	260	No	No	No	172	150	51	CAF-A7B
CAF-A225S-220-350	Sleeve	51.94	53.87	2000	2000	36.4	37.3	220	11.5	15.7	120	No	No	No	120	120	25	CAF-A2S
CAF-A751B-224-410	Ball	162.04	140.81	2400	2200	51.3	49	220	28.1	28	230	No	No	No	172	150	51	CAF-A7B
CAF-A751B-126-450	Ball	164.5	160.47	2600	2600	51.9	51.2	110	29.1	29.1	450	No	No	No	172	150	51	CAF-A7B
CAF-A238S-226-400	Sleeve	78.57	88.14	2600	2900	41	44.3	220	12.7	16	130	No	No	No	120	120	38	CAF-A2S
CAF-A238S-126-400	Sleeve	78.04	84.85	2600	2900	39.5	42.6	110	17.1	19.8	300	No	No	No	120	120	38	CAF-A2S
