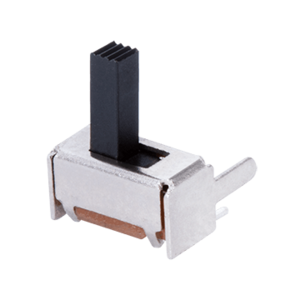

SLW-874744-6A-RA-N-D

SLW-874744-6A-RA-N-D
SLW-874744-6A-RA-N-D Alternate View

SLW-874744-6A-RA-N-D

8.7 x 4.7 x 4.4 mm, 6 mm Raised Slide Actuator, Right Angle, Through Hole, Slide Switch

Datasheet

Specifications

Type Description
Select
Actuator Level Raised
Actuator Type Slide
Actuator Color Black
Circuit SPDT
Switch Function On-On
Contact Timing Non-shorting
Rated Voltage (Vdc) 50
Current Rating (mA) 300
Pitch (mm) 2
Mounting Style Through Hole
Termination PC Pin
Orientation Horizontal
Operating Temp Range (°C) -20 ~ 70
Dimensions LxWxH (mm) 8.7 x 4.7 x 4.4
Dimensions LxWxH (in) 0.343 x 0.185 x 0.173
Switch Type Slide
