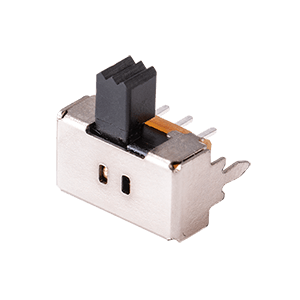

SLW-108645-4A-RA-D

SLW-108645-4A-RA-D
SLW-108645-4A-RA-D Alternate View

SLW-108645-4A-RA-D

10.8 x 6.4 x 5 mm, 4 mm Raised Slide Actuator, Right-Angle, Through Hole, Slide Switch

Datasheet

Specifications

Type Description
Select
Actuator Level Raised
Actuator Type Slide
Actuator Color Black
Circuit DPDT
Switch Function DPDT
Contact Timing Non-shorting
Rated Voltage (Vdc) 50
Current Rating (mA) 300
Pitch (mm) 2.5
Mounting Style Through Hole
Termination PC Pin
Orientation Horizontal
Operating Temp Range (°C) -25 ~ 70
Dimensions LxWxH (mm) 10.8 x 6.4 x 5
Dimensions LxWxH (in) 0.425 x 0.251 x 0.197
Switch Type Slide Switch
