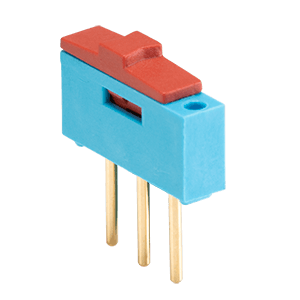

MSS-102559-14A-D
10 x 2.5 x 5.9 mm, 1.4 mm Raised Slide Actuator, Through Hole, Miniature Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Mini Slide |
|
| Actuator Type | Slide |
|
| Actuator Color | Red |
|
| Actuator Level | Raised |
|
| Circuit | SPDT |
|
| Switch Function | On-On |
|
| Contact Timing | Shorting |
|
| Rated Voltage (Vdc) | 24 |
|
| Current Rating (mA) | 300 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Vertical |
|
| Pitch (mm) | 2.54 |
|
| Operating Temp Range (°C) | -40 ~ 85 |
|
| Dimensions LxWxH (in) | 0.39 x 0.1 x 0.23 |
|
| Dimensions LxWxH (mm) | 10 x 2.5 x 5.9 |
|
