SLW-121586-5A-D

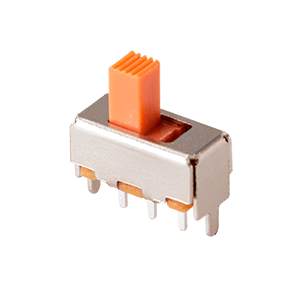

12.1 x 5.8 x 6 mm, 5 mm Raised Slide Actuator, Vertical, Through Hole, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Actuator Level | Raised |
|
| Actuator Type | Slide |
|
| Actuator Color | Orange |
|
| Circuit | SPDT |
|
| Switch Function | On-On |
|
| Contact Timing | Non-shorting |
|
| Rated Voltage (Vdc) | 50 |
|
| Current Rating (mA) | 500 |
|
| Pitch (mm) | 3 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Vertical |
|
| Operating Temp Range (°C) | -20 ~ 70 |
|
| Dimensions LxWxH (mm) | 12.1 x 5.8 x 5 |
|
| Dimensions LxWxH (in) | 0.476 x 0.228 x 0.196 |
|
| Switch Type | Slide Switch |
|
