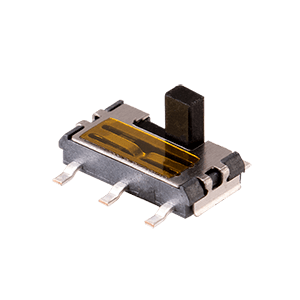

SLW-713515-2A-SMT-TR
7.1 x 3.5 x 1.5 mm, 2 mm Raised Slide Actuator, Vertical, Surface Mount, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Actuator Level | Raised |
|
| Actuator Type | Slide |
|
| Actuator Color | Black |
|
| Circuit | DPDT |
|
| Switch Function | On-On |
|
| Contact Timing | Non-shorting |
|
| Rated Voltage (Vdc) | 12 |
|
| Current Rating (mA) | 100 |
|
| Pitch (mm) | 2.5 |
|
| Mounting Style | Surface Mount |
|
| Termination | Gull Wing |
|
| Orientation | Vertical |
|
| Dimensions LxWxH (mm) | 7.1 x 3.5 x 1.5 |
|
| Dimensions LxWxH (in) | 0.28 x 0.137 x 0.06 |
|
| Switch Type | Slide Switch |
|
