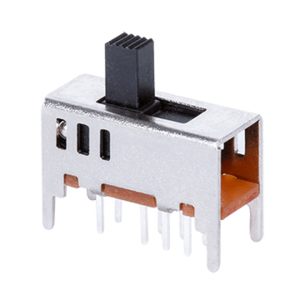

SLW-161167-5A-S-D

16 x 11.3 x 6.7 mm, 5 mm Raised Slide Actuator, Through Hole, Slide Switch

Datasheet

Specifications

Type Description
Select
Actuator Level Raised
Actuator Type Slide
Actuator Color Black
Circuit DP3T
Switch Function On-On-On
Contact Timing Shorting
Rated Voltage (Vdc) 30
Current Rating (mA) 200
Pitch (mm) 2
Mounting Style Through Hole
Termination PC Pin
Orientation Vertical
Operating Temp Range (°C) -20 ~ 70
Dimensions LxWxH (mm) 16 x 11.3 x 6.7
Dimensions LxWxH (in) 0.63 x 0.451 x 0.264
Switch Type Slide
