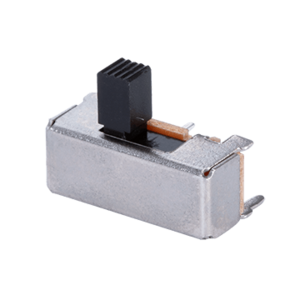

SLW-158562-5A-RA-N-D
15.1 x 8.5 x 6.2 mm, 5 mm Raised Slide Actuator, Right Angle, Through Hole, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Actuator Level | Raised |
|
| Actuator Type | Slide |
|
| Actuator Color | Black |
|
| Circuit | DPDT |
|
| Switch Function | On-On-On |
|
| Contact Timing | Non-shorting |
|
| Rated Voltage (Vdc) | 50 |
|
| Current Rating (mA) | 300 |
|
| Pitch (mm) | 4 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Horizontal |
|
| Dimensions LxWxH (mm) | 15.1 x 8.5 x 6.2 |
|
| Dimensions LxWxH (in) | 0.594 x 8.5 x 0.244 |
|
| Switch Type | Slide |
|
