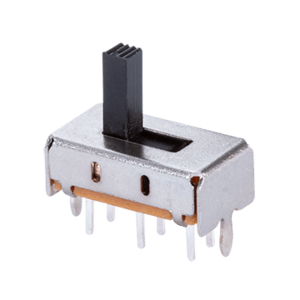

SLW-127787-6A-N-D
12.7 x 7.8 x 7 mm, 6 mm Raised Slide Actuator, Through Hole, Slide Switch
Specifications
| Type | Description | |
|---|---|---|
| Actuator Level | Raised |
|
| Actuator Type | Slide |
|
| Actuator Color | Black |
|
| Circuit | DPDT |
|
| Switch Function | On-On-On |
|
| Contact Timing | Non-shorting |
|
| Rated Voltage (Vdc) | 50 |
|
| Current Rating (mA) | 300 |
|
| Pitch (mm) | 4 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Orientation | Vertical |
|
| Dimensions LxWxH (mm) | 12.7 x 7.8 x 8 |
|
| Dimensions LxWxH (in) | 0.5 x 7.8 x 0.276 |
|
| Switch Type | Slide |
|
