CP203475H

CP203475H

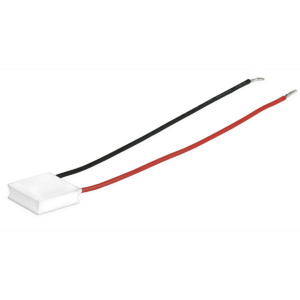

30 x 30 x 4.75 mm, 2.0 A Input with Leads, High Performance Peltier (TEC) Module

The CP20H series is a family of 2.0 A high performance Peltier modules featuring a high temperature delta of 77°C. These thermoelectric modules are ideally suited for high density, high power medical and industrial applications as well as refrigeration and sealed environments where forced air cooling is not an option. Larger models integrate Same Sky’s innovative arcTEC™ structure to improve temperature control and boost reliability under thermal cycling conditions.

Datasheet

Features

Precise temperature control
Solid state construction
Wide ΔTmax
Enhanced reliability for high thermal cycling
Superior thermal performance
Silicon sealed
arcTEC™ structure (CP203475H only)

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 6.7
Imax (A) 2
Vmax (V) 15.7
Qmax (Th=27°C) (W) 18.2
Qmax (Th=50°C) (W) 19.5
Dimensions LxWxH (mm) 30 x 30 x 4.75
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 77
Series CP20H
