CP081030-M

CP081030-M

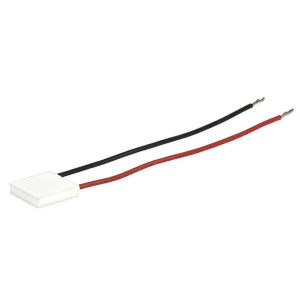

10 x 10 x 3.0 mm, 0.8 A Input with Leads, Peltier (TEC) Module

The CP08-M series is a low profile Peltier module designed for space-constrained applications. Featuring a compact 10 mm footprint, low current draw and precise temperature control, this thermoelectric module series is ideally suited for high density, high power medical and industrial applications as well as refrigeration and sealed environments where forced air cooling is not an option.

Datasheet

Features

Compact 10 mm footprint
Low profile
Low current draw
Precise temperature control
Solid state construction

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 9.85
Imax (A) 0.8
Vmax (V) 8.8
Qmax (Th=27°C) (W) 3.7
ΔTmax (Th=27°C) 68
Qmax (Th=50°C) (W) 4.2
ΔTmax (Th=50°C) 75
Dimensions LxWxH (mm) 10 x 10 x 3
Series CP08-M

Technical Docs

Datasheet 3D Model
