CP074933-238

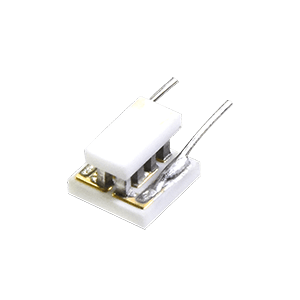

4.9 x 3.3 x 2.38 mm, 0.7 A Input with Leads, Peltier (TEC) Module

The CP07-M series is a family of 0.7 A micro Peltier modules with compact packages as small as 3.4 mm x 3.4 mm and profiles as low as 2.38 mm. Featuring a temperature delta of 77°C, precise temperature control, and reliable solid-state construction, these micro thermoelectric modules are ideal for a range of space-constrained applications where forced air cooling is not an option.

Datasheet

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 1.43
Imax (A) 0.7
Vmax (V) 1.3
Qmax (Th=27°C) (W) 0.6
Qmax (Th=50°C) (W) 0.7
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 77
Dimensions LxWxH (mm) 4.9 x 3.3 x 2.38
Series CP07-M

Technical Docs

Datasheet 3D Model
