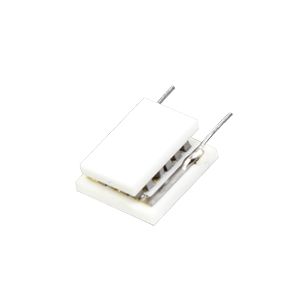

7.2 x 6.0 x 2.68 mm, 1.0 A Input with Leads, Peltier (TEC) Module

The CP10-M series is a family of 1.0 A micro Peltier modules with compact packages as small as 6.2 mm x 6.2 mm and profiles as low as 2.68 mm. Featuring a temperature delta of 77°C, precise temperature control, and reliable solid-state construction, these micro thermoelectric modules are ideal for a range of space-constrained applications where forced air cooling is not an option.

Datasheet

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 1.57
Imax (A) 1
Vmax (V) 2.1
Qmax (Th=27°C) (W) 1.3
Qmax (Th=50°C) (W) 1.4
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 77
Dimensions LxWxH (mm) 7.2 x 6 x 2.68
Series CP10-M

Technical Docs

Datasheet 3D Model
