CP20151

CP20151

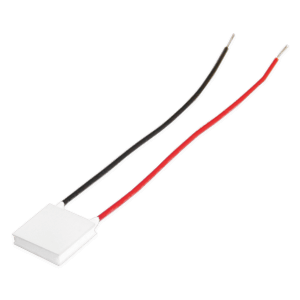

15 x 15 x 5.02 mm, 2.0 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 1.6
Imax (A) 2
Vmax (V) 3.8
Qmax (Th=27°C) (W) 3.7
ΔTmax (Th=27°C) 66
Qmax (Th=50°C) (W) 4
ΔTmax (Th=50°C) 72
Dimensions LxWxH (mm) 15 x 15 x 5.02
Series CP20

Technical Docs

Datasheet 3D Model

Buy from Same Sky
