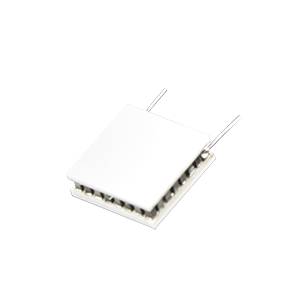

8.1 x 8.1 x 2.22 mm, 1.8 A Input with Leads, Peltier (TEC) Module

The CP18-M series is a family of 1.8 A micro Peltier modules with compact 8.1 mm x 8.1 mm packages and profiles as low as 2.22 mm. Featuring a temperature delta of 77°C, precise temperature control, and reliable solid-state construction, these micro thermoelectric modules are ideal for a range of space-constrained applications where forced air cooling is not an option.

Datasheet

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 1.62
Imax (A) 1.8
Vmax (V) 3.8
Qmax (Th=27°C) (W) 3.8
Qmax (Th=50°C) (W) 4.2
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 77
Dimensions LxWxH (mm) 8.1 x 8.1 x 2.22
Series CP18-M

Technical Docs

Datasheet 3D Model
