CP13535

CP13535

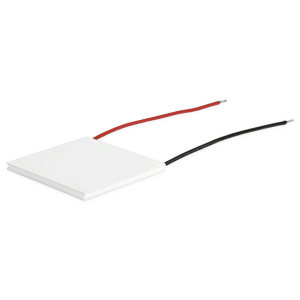

50 x 50 x 3.42 mm, 13 A Input with Leads, Peltier (TEC) Module

The CP130 series is a 13 A high performance Peltier module featuring a low profile and high temperature delta of 75°C. This thermoelectric module is ideally suited for high density, high power medical and industrial applications as well as refrigeration and sealed environments where forced air cooling is not an option. The model also integrates Same Sky’s innovative arcTEC™ structure to improve temperature control and boost reliability under thermal cycling conditions.

Datasheet

Features

arcTEC™ structure
Enhanced reliability for high thermal cycling
Superior thermal performance
Silicon sealed
Wide ΔTmax
Low profile
Precise temperature control
Solid state construction

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 1.4
Imax (A) 13
Vmax (V) 24.1
Qmax (Th=27°C) (W) 200
ΔTmax (Th=27°C) 68
Qmax (Th=50°C) (W) 224
ΔTmax (Th=50°C) 75
Dimensions LxWxH (mm) 50 x 50 x 3.42
Series CP130

Technical Docs

Datasheet 3D Model
