CP060-3029
CP060-3029
CP060-3029 Alternate View

CP060-3029

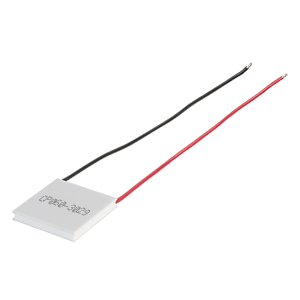

30 x 30 x 2.9 mm, 6 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 6
Vmax (V) 17.2
Qmax (Th=27°C) (W) 60.5
Qmax (Th=50°C) (W) 65.1
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 2
Resistance (Th=50°C) (Ohms ± 10%) 2.2
Dimensions LxWxH (mm) 30 x 30 x 2.9

Technical Docs

Datasheet
