CP053-301538
CP053-301538
CP053-301538 Alternate View

CP053-301538

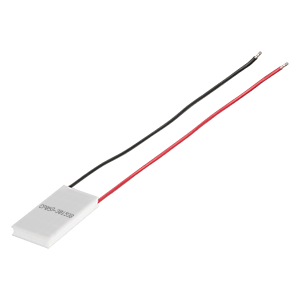

30 x 15 x 3.8 mm, 5.3 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 5.3
Vmax (V) 4.8
Qmax (Th=27°C) (W) 14.9
Qmax (Th=50°C) (W) 16.3
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 0.65
Resistance (Th=50°C) (Ohms ± 10%) 0.7
Dimensions LxWxH (mm) 30 x 15 x 3.8

Technical Docs

Datasheet
