CP025-3040
CP025-3040
CP025-3040 Alternate View

CP025-3040

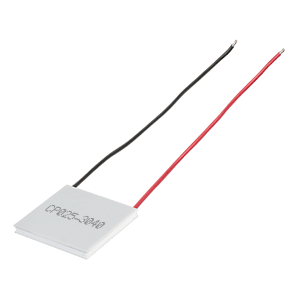

30 x 30 x 4 mm, 2.51 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Imax (A) 2.51
Vmax (V) 17.2
Qmax (Th=27°C) (W) 25.3
Qmax (Th=50°C) (W) 27.2
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 79
Resistance (Th=27°C) (Ohms ± 10%) 4.8
Resistance (Th=50°C) (Ohms ± 10%) 5.2
Dimensions LxWxH (mm) 30 x 30 x 4

Technical Docs

Datasheet
