CP020-156044

CP020-156044

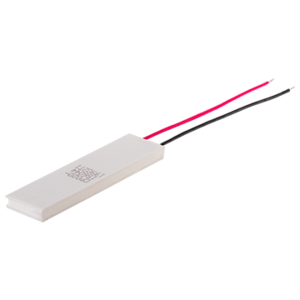

60 x 15 x 4.4 mm, 2 A Input with Leads, Peltier (TEC) Module

The CP020-156044 is a 2 A high-performance, single-stage Peltier module featuring a high temperature delta of 77°C. The model also integrates Same Sky’s innovative arcTEC™ structure to improve temperature control and boost reliability under thermal cycling conditions.

Datasheet

Features

arcTEC™ structure
Silicon sealed
Wide ΔTmax
Low profile
Precise temperature control
Solid state construction

Specifications

Type Description
Select
Imax (A) 2
Vmax (V) 24.1
Qmax (Th=27°C) (W) 25
Qmax (Th=50°C) (W) 27
ΔTmax (Th=27°C) 70
ΔTmax (Th=50°C) 77
Dimensions LxWxH (mm) 60 x 15 x 4.4
Series CP020
Resistance (Ohms ± 10%) 10.7

Technical Docs

Datasheet
