CP85438

CP85438

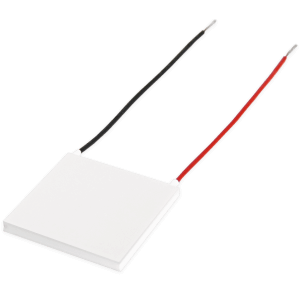

40 x 40 x 3.74 mm, 8.5 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 1.5
Imax (A) 8.5
Vmax (V) 15.4
Qmax (Th=27°C) (W) 75
Qmax (Th=50°C) (W) 83.9
ΔTmax (Th=27°C) 68
Dimensions LxWxH (mm) 40 x 40 x 3.74
Series CP805
ΔTmax (Th=50°C) 75

Technical Docs

Datasheet 3D Model

Buy from Same Sky
