CP85435

CP85435

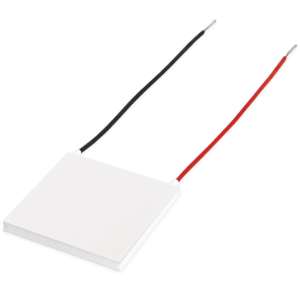

40 x 40 x 3.5 mm, 8.5 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 2.28
Imax (A) 8.5
Vmax (V) 24.1
Qmax (Th=27°C) (W) 118
Qmax (Th=50°C) (W) 130
Dimensions LxWxH (mm) 40 x 40 x 3.5
ΔTmax (Th=27°C) 68
ΔTmax (Th=50°C) 75
Series CP85

Technical Docs

Datasheet 3D Model

Buy from Same Sky
