CP60340

CP60340

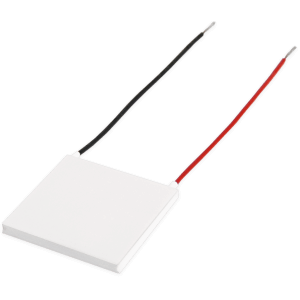

30 x 30 x 4.0 mm, 6.0 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 1.21
Imax (A) 6
Vmax (V) 8.6
Qmax (Th=27°C) (W) 29
Qmax (Th=50°C) (W) 32.4
ΔTmax (Th=27°C) 68
Dimensions LxWxH (mm) 30 x 30 x 4
Series CP60
ΔTmax (Th=50°C) 75

Technical Docs

Datasheet 3D Model
