CP60140

CP60140

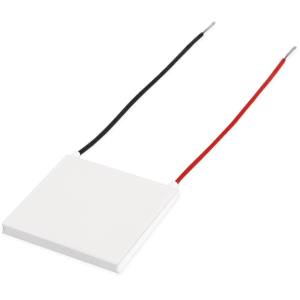

15 x 15 x 4.0 mm, 6.0 A Input with Leads, Peltier (TEC) Module

Datasheet

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 0.29
Imax (A) 6
Vmax (V) 2.1
Qmax (Th=27°C) (W) 7.1
Qmax (Th=50°C) (W) 7.9
ΔTmax (Th=27°C) 68
Dimensions LxWxH (mm) 15 x 15 x 4
Series CP60
ΔTmax (Th=50°C) 75

Technical Docs

Datasheet 3D Model

Buy from Same Sky
