CP12437

CP12437

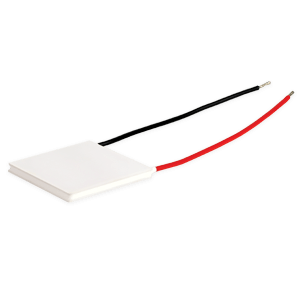

40 x 40 x 3.8 mm, 12.5 A Input with Leads, Peltier (TEC) Module

The CP125 series is a 12.5 A Peltier module featuring a low profile and high temperature delta of 75°C. Thanks to its innovative arcTEC™ structure that provides improved temperature control and boosted reliability, this thermoelectric module is ideally suited for high density, high power medical and industrial applications as well as refrigeration and sealed environments where forced air cooling is not an option.

Datasheet

Features

Enhanced reliability for high thermal cycling
Superior thermal performance
Silicon sealed
Wide ΔTmax
Precise temperature control
Solid state construction
arcTEC™ structure

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 0.95
Imax (A) 12.5
Vmax (V) 15.4
Qmax (Th=27°C) (W) 110
ΔTmax (Th=27°C) 68
Qmax (Th=50°C) (W) 121
ΔTmax (Th=50°C) 75
Dimensions LxWxH (mm) 40 x 40 x 3.7
Series CP125

Technical Docs

Datasheet 3D Model
