GF1202B

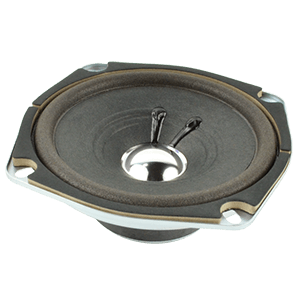

GF1202B Speaker Profile View
GF1202B Speaker Bottom View

GF1202B

120 mm, Square Frame, 20.0 W, 8 Ohm, Ferrite Magnet, Paper Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 91 (1 W / 0.5 m)
Max Input (W) 30
Nominal Input (W) 20
Impedance (Ohms) 8
Resonance Freq. (Hz) 88
Cone Type Paper
Magnet Type Ferrite
Frame Shape Square
Dimensions LxWxH (mm) 120 x 120 x 45
Dimensions LxWxH (in) 4.72 x 4.72 x 1.77
Mounting Style Solder Eyelet(s)

Technical Docs

Datasheet
