GA0701

GA0701

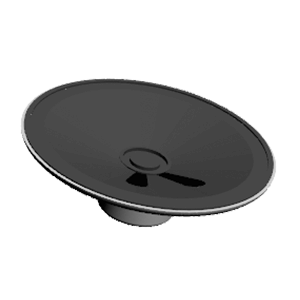

70 mm, Round Frame, 0.5 W, 8 Ohm, AlNiCo Magnet, Paper Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 93 (1 W / 0.5 m)
Max Input (W) 1
Nominal Input (W) 0.5
Impedance (Ohms) 8
Resonance Freq. (Hz) 280
Cone Type Paper
Magnet Type Alnico
Frame Shape Round
Dimensions LxWxH (mm) 70 x 70 x 22.5
Dimensions LxWxH (in) 2.76 x 2.76 x 0.89
Mounting Style Solder Eyelet(s)

Technical Docs

Datasheet 3D Model
