CLS0571M

CLS0571M

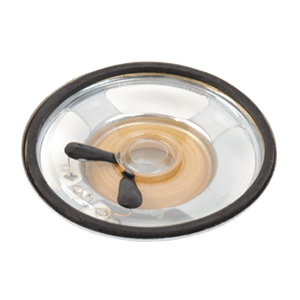

57 mm, Round Frame, 0.2 W, 8 Ohm, Neodymium Magnet, PET Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 89 (0.2 W / 0.5 m)
Max Input (W) 0.5
Nominal Input (W) 0.2
Impedance (Ohms) 8
Resonance Freq. (Hz) 380
Cone Type PET
Magnet Type Nd-Fe-B
Frame Shape Round
Dimensions LxWxH (mm) 57 x 57 x 9.5
Dimensions LxWxH (in) 2.24 x 2.24 x 0.37
Mounting Style Solder Eyelet(s)

Technical Docs

Datasheet 3D Model
