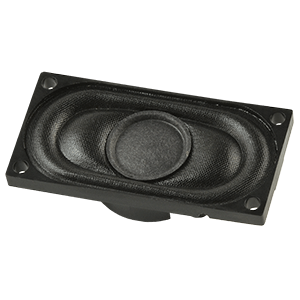

CMS-40208N
40 mm x 20 mm, Rectangle Frame, 1 W, 8 Ohm, Neodymium Magnet, Cloth Cone, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 98 (1 W / 0.1 m) |
|
| Nominal Input (W) | 1 |
|
| Max Input (W) | 1.5 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 650 |
|
| Cone Type | Cloth |
|
| Magnet Type | Nd-Fe-B |
|
| Dimensions LxWxH (mm) | 40 x 20 x 8.4 |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (in) | 1.57 x 0.79 x 0.33 |
|
| Mounting Style | Solder Pads |
|
