CMS-3520-18N

CMS-3520-18N
CMS-3520-18N Alternate View

CMS-3520-18N

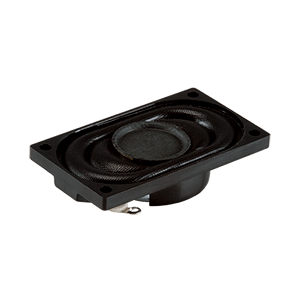

35 x 20 mm, Rectangular Frame, 1 W, 8 Ohm, Neodymium Magnet, Cloth Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 85 (1 W / 0.5 m)
Nominal Input (W) 1
Max Input (W) 1.5
Impedance (Ohms) 8
Resonance Freq. (Hz) 700
Cone Type Cloth
Magnet Type Nd-Fe-B
Frame Shape Rectangular
Mounting Style Solder Pads
Dimensions LxWxH (in) 1.38 x 0.79 x 0.3
Dimensions LxWxH (mm) 35 x 20 x 7.6
Enclosed No

Technical Docs

Datasheet 3D Model
