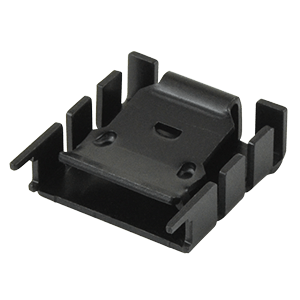

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Orientation | No Pin |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 17.05 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 20.24 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 4.51 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 2.98 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 4.4 |
|
| Material | AL1050 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 24.4 x 25 x 9.5 |
|
| Dimensions LxWxH (in) | 0.96 x 0.98 x 0.37 |
|
