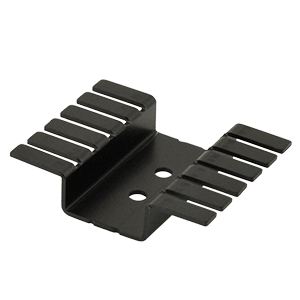

HSS-B20-NP-04

HSS-B20-NP-04 Bottom View

HSS-B20-NP-04

Stamped Heat Sink, TO-220, Aluminum, PCB, No Pin

Datasheet

Specifications

Type Description
Select
Package Cooled TO-220
Mounting Style PCB
Solder Pin Orientation No Pin
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 11.54
Thermal Resistance @ 1 W, nat conv (°C/W) 15.27
Thermal Resistance @ 1 W, 200 LFM (°C/W) 3.76
Thermal Resistance @ 1 W, 400 LFM (°C/W) 2.74
Power Dissipation @ 75°C ΔT, nat conv (W) 6.5
Material AL1050
Material Finish Black Anodized
Dimensions LxWxH (mm) 36.83 x 44.45 x 9.4
Dimensions LxWxH (in) 1.45 x 1.75 x 0.37

Technical Docs

Datasheet 3D Model
