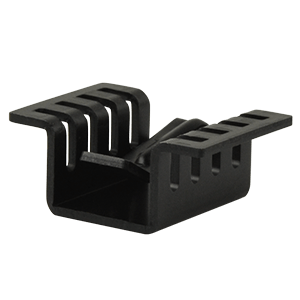

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Orientation | No Pin |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 28.85 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 32.65 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 6.32 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 4.85 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 2.6 |
|
| Material | AL1050 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 18.79 x 22.86 x 9.52 |
|
| Dimensions LxWxH (in) | 0.74 x 0.9 x 0.37 |
|
