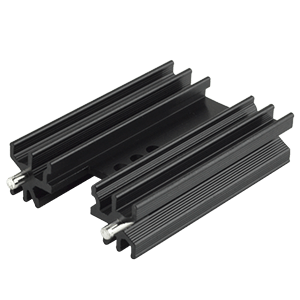

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Length (mm) | 2.6 |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 7.81 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 11.54 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 3.73 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 2.31 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 9.6 |
|
| Material | AL6063-T5 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 63 x 34.5 x 12.5 |
|
| Dimensions LxWxH (in) | 2.48 x 1.36 x 0.49 |
|
| Series | HSE-B20X |
|
