HSE10-B20-NP

HSE10-B20-NP
HSE10-B20-NP Alternate View

HSE10-B20-NP

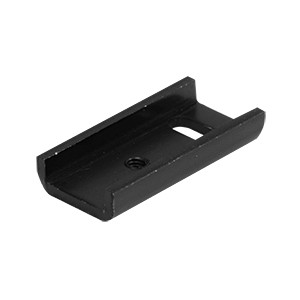

Extruded Heat Sink, TO-218 or TO-220, Aluminum, PCB

Datasheet

Specifications

Type Description
Select
Package Cooled TO-218, TO-220
Mounting Style PCB
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 38.45
Thermal Resistance @ 1 W, nat conv (°C/W) 41.2
Thermal Resistance @ 1 W, 200 LFM (°C/W) 20.9
Thermal Resistance @ 1 W, 400 LFM (°C/W) 15
Power Dissipation @ 75°C ΔT, nat conv (W) 1.95
Material AL1050
Material Finish Black Anodized
Dimensions LxWxH (mm) 12 x 25 x 4.5
Dimensions LxWxH (in) 0.47 x 0.98 x 0.18
