HSE04 Series

HSE04 Series
HSE04 Series Alternate View

HSE04-251265-1

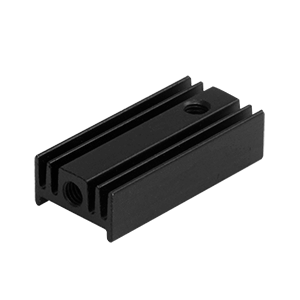

Extruded Heat Sink, TO-218 or TO-220, Aluminum, PCB

Datasheet

Specifications

Type Description
Select
Package Cooled TO-218, TO-220
Mounting Style PCB
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 31.22
Thermal Resistance @ 1 W, nat conv (°C/W) 35.3
Thermal Resistance @ 1 W, 200 LFM (°C/W) 16.3
Thermal Resistance @ 1 W, 400 LFM (°C/W) 10.8
Power Dissipation @ 75°C ΔT, nat conv (W) 2.4
Material AL6063-T5
Material Finish Black Anodized
Dimensions LxWxH (mm) 25 x 12 x 6.5
Dimensions LxWxH (in) 0.98 x 0.47 x 0.26
Series HSE04

Technical Docs

Datasheet 3D Model
