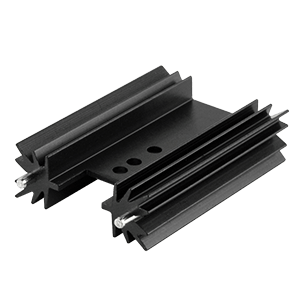

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 11.54 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 13.64 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 3.66 |
|
| Solder Pin Length (mm) | 2.3 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 2.76 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 6.5 |
|
| Dimensions LxWxH (mm) | 38.1 x 34.92 x 12.7 |
|
| Material | AL6063-T5 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (in) | 1.5 x 1.37 x 0.5 |
|
| Series | HSE-BX-02 |
|
