HSE-B20350-NP

HSE-B20350-NP Bottom View

HSE-B20350-NP

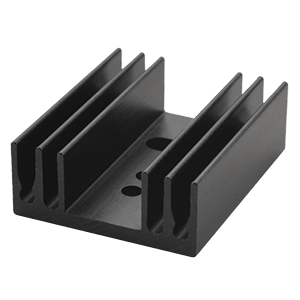

Extruded Heat Sink, TO-220, Aluminum, PCB

Datasheet

Specifications

Type Description
Select
Package Cooled TO-220
Mounting Style PCB
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 12.1
Thermal Resistance @ 1 W, nat conv (°C/W) 15.42
Thermal Resistance @ 1 W, 200 LFM (°C/W) 2.91
Thermal Resistance @ 1 W, 400 LFM (°C/W) 2.13
Power Dissipation @ 75°C ΔT, nat conv (W) 6.2
Material AL6063-T5
Material Finish Black Anodized
Dimensions LxWxH (mm) 35 x 29 x 12
Dimensions LxWxH (in) 1.38 x 1.14 x 0.47

Technical Docs

Datasheet 3D Model
