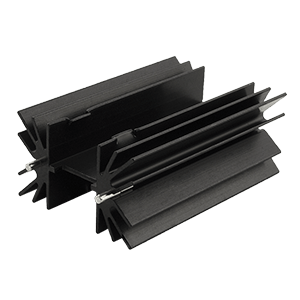

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-218 |
|
| Mounting Style | PCB |
|
| Solder Pin Length (mm) | 3.5 |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 6.25 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 8.34 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 3.52 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 2.48 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 12 |
|
| Material | AL6063-T5 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 38.1 x 41.6 x 25 |
|
| Dimensions LxWxH (in) | 1.5 x 1.64 x 0.98 |
|
| Series | HSE-B18X-035H |
|
