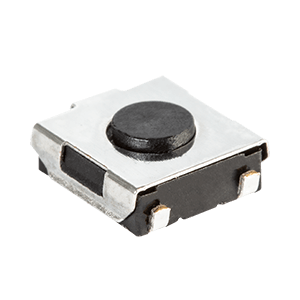

TS34-62-35-BK-G-260-SMT-TR
6.2 x 6.2 mm, 3.5 mm Actuator Height, 260 gf, Black, w/ Ground, Surface Mount, SPST, Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Tactile |
|
| Circuit | SPST |
|
| Actuator Height (mm) | 3.5 |
|
| Operating Force (gf) | 260 ± 70 |
|
| Mounting Style | Surface Mount |
|
| Termination | J-Hook Gull Wing |
|
| Rated Voltage (Vdc) | 12 |
|
| Current Rating (mA) | 50 |
|
| Actuator Travel (mm) | 0.2 |
|
| Contact Resistance (mΩ) | 100 |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
| Lifecycles | 100000 |
|
| Illumination | No |
|
| Illumination Color | None |
|
| Operating Temp. (°C) | -40 ~ 90 |
|
| Dimensions LxWxH (mm) | 6.2 x 6.2 x 2.05 |
|
| Dimensions LxWxH (in) | 0.253 x 0.253 x 0.083 |
|
| Series | TS34 |
|
