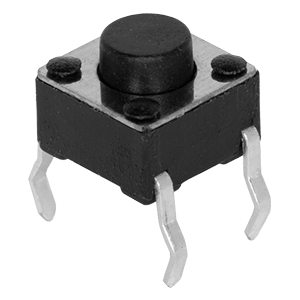

TS02-66-60-BK-160-LCR-D

6 x 6 mm, 6 mm Actuator Height, 160 gf, Black, Long Crimped, Through Hole, SPST, Tactile Switch

Datasheet

Specifications

Type Description
Select
Circuit SPST
Actuator Height (mm) 6
Mounting Style Through Hole
Termination Long Crimped
Rated Voltage (Vdc) 12
Current Rating (mA) 50
Operating Force (gf) 160 ± 50
Actuator Travel (mm) 0.25
Lifecycles 80000
Contact Resistance (mΩ) 100
Dimensions LxWxH (mm) 6 x 6 x 6
Insulation Resistance (MΩ at 100 Vdc) 100
Dimensions LxWxH (in) 0.24 x 0.24 x 0.24
Operating Temp. (°C) -30 ~ 80
Switch Type Tactile
Withstanding Voltage (Vac for 1 min) 250
Illumination No
Illumination Color None
Series TS02
Orientation Vertical
