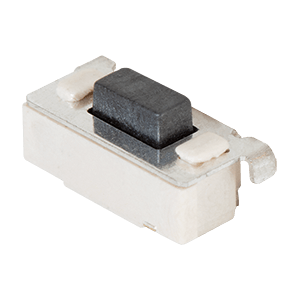

TS32-7-35-BK-260-RA-H-SMT-TR
7 x 3.5 mm, 1.1 mm Actuator Height, 260 gf, Black, Halogen Free, Right Angle, Surface Mount, SPST, Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Tactile |
|
| Circuit | SPST |
|
| Actuator Height (mm) | 1.1 |
|
| Operating Force (gf) | 160 ± 50 |
|
| Mounting Style | Surface Mount |
|
| Termination | Gull Wing |
|
| Rated Voltage (Vdc) | 12 |
|
| Current Rating (mA) | 50 |
|
| Actuator Travel (mm) | 0.25 |
|
| Contact Resistance (mΩ) | 100 |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
| Lifecycles | 100000 |
|
| Illumination | No |
|
| Illumination Color | None |
|
| Operating Temp. (°C) | -40 ~ 85 |
|
| Dimensions LxWxH (mm) | 7 x 3.5 x 2.25 |
|
| Dimensions LxWxH (in) | 0.275 x 0.137 x 0.088 |
|
| Series | TS32 |
|
