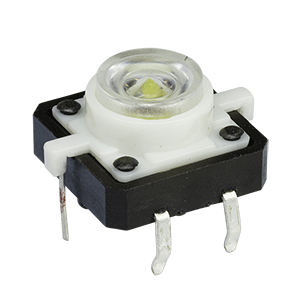

TS29-1212-1-WT-300-D
13 x 15 mm, 1 mm Actuator Height, 300 gf, Through Hole, SPST, White Illuminiated, Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Circuit | SPST |
|
| Actuator Height (mm) | 6.3 |
|
| Operating Force (gf) | 300 ± 100 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Rated Voltage (Vdc) | 12 |
|
| Current Rating (mA) | 50 |
|
| Lifecycles | 100000 |
|
| Dimensions LxWxH (mm) | 6.3 x 3.3 x 12.2 |
|
| Dimensions LxWxH (in) | 0.248 x 0.129 x 0.48 |
|
| Actuator Travel (mm) | 0.25 |
|
| Contact Resistance (mΩ) | 100 |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Operating Temp. (°C) | -30 ~ 80 |
|
| Switch Type | Tactile |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
| Illumination | Yes |
|
| Illumination Color | White |
|
| Series | TS29 |
|
| Orientation | Vertical |
|
