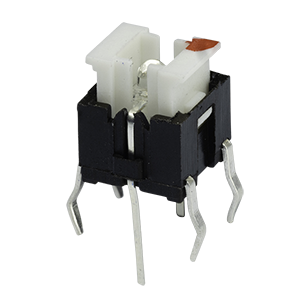

TS27-68-24-Y-260-D
6.8 x 6 mm, 2.5 mm Actuator Height, 260 gf, Through Hole, SPST,Yellow Illuminiated, Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Circuit | SPST |
|
| Actuator Height (mm) | 2.5 |
|
| Operating Force (gf) | 260 ± 50 |
|
| Mounting Style | Through Hole |
|
| Termination | PC Pin |
|
| Rated Voltage (Vdc) | 12 |
|
| Current Rating (mA) | 50 |
|
| Lifecycles | 100000 |
|
| Dimensions LxWxH (mm) | 6.8 x 6 x 7.2 |
|
| Dimensions LxWxH (in) | 0.267 x 0.236 x 0.283 |
|
| Actuator Travel (mm) | 0.25 |
|
| Contact Resistance (mΩ) | 100 |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Operating Temp. (°C) | -30 ~ 80 |
|
| Switch Type | Tactile |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
| Illumination | Yes |
|
| Illumination Color | Yellow |
|
| Series | TS27 |
|
| Orientation | Vertical |
|
