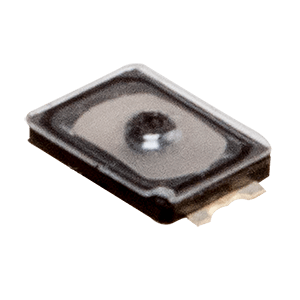

TS19-32-06-BK-240-1-SMT-TR-67
3 x 2 mm, 0.6 mm Actuator Height, 240 gf, Black, Surface Mount, TR, SPST, IP67, Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Circuit | SPST |
|
| Actuator Height (mm) | 0.6 |
|
| Mounting Style | Surface Mount |
|
| Operating Force (gf) | 240 ± 50 |
|
| Termination | Gull Wing |
|
| Rated Voltage (Vdc) | 12 |
|
| Current Rating (mA) | 50 |
|
| IP Rating | IP67 |
|
| Actuator Travel (mm) | 0.1 |
|
| Lifecycles | 100000 |
|
| Contact Resistance (mΩ) | 100 |
|
| Dimensions LxWxH (mm) | 3 x 2 x 0.6 |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Dimensions LxWxH (in) | 0.12 x 0.08 x 0.02 |
|
| Operating Temp. (°C) | -30 ~ 85 |
|
| Switch Type | Tactile |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
| Illumination | No |
|
| Illumination Color | None |
|
| Series | TS19 |
|
| Orientation | Vertical |
|
