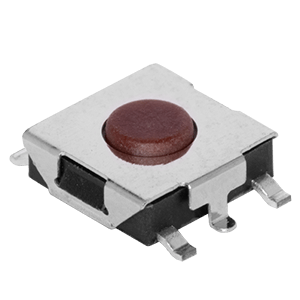

TS06-667-25-R-160-G-SMT-TR
6 x 6.7 mm, 2.5 mm Actuator Height, 160 gf, Red, Surface Mount, SPST, Tactile Switch
Specifications
| Type | Description | |
|---|---|---|
| Switch Type | Tactile |
|
| Circuit | SPST |
|
| Actuator Height (mm) | 5.5 |
|
| Operating Force (gf) | 160 ± 50 |
|
| Mounting Style | Surface Mount |
|
| Termination | Gull Wing |
|
| Rated Voltage (Vdc) | 12 |
|
| Current Rating (mA) | 50 |
|
| Actuator Travel (mm) | 0.25 |
|
| Contact Resistance (mΩ) | 100 |
|
| Insulation Resistance (MΩ at 100 Vdc) | 100 |
|
| Withstanding Voltage (Vac for 1 min) | 250 |
|
| Lifecycles | 80000 |
|
| Orientation | Vertical |
|
| Illumination | No |
|
| Dimensions LxWxH (mm) | 6 x 6.7 x 2.5 |
|
| Illumination Color | None |
|
| Dimensions LxWxH (in) | 0.24 x 0.26 x 0.1 |
|
| Operating Temp. (°C) | -30 ~ 80 |
|
| Series | TS06 |
|
