PTN06-E500CB20-H

PTN06-E500CB20-H
PTN06-E500CB20-H

PTN06-E500CB20-H

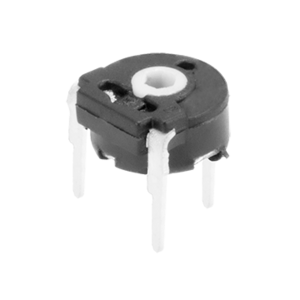

6 mm, 500 kΩ, Vertical, Linear, Cross Slot Shaftless Trimmer Potentiometer, 50% Wiper

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 6
Termination Straight Pc Pins
Taper Linear
Orientation Vertical
Resistance (kΩ) 500
Resistance Ω 500
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 235
Rotor Cross Slot
Shaft Style Shaftless
Series PTN06
