PTN10-A25SB20

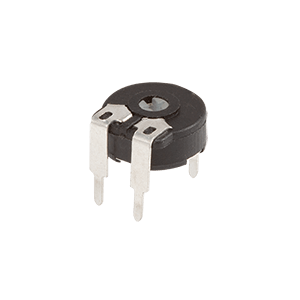

10 mm, 25 kΩ, Linear, Through Hole, Horizontal, Shaftless Screwdriver Trimmer Potentiometer

Same Sky’s PTN10 series is a shaftless trimmer potentiometer featuring a wide variety of terminal configurations and resistance ratings from 1 to 2000 kΩ. The series offers linear tapers and carries a power rating of 0.15 W, mechanical angle of 235°, and an operating temperature range from -10 to 70°C. With a rotational life of 10,000 cycles, this shaftless trimmer potentiometer is ideal for control inputs for electronic circuits and audio control applications.

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 10
Termination Crimped Pc Pins
Taper Linear
Orientation Horizontal
Resistance (kΩ) 25
Resistance Tolerance (%) 20
Operating Temp Range (°C) -10 ~ 70
Number of Turns 1
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 235
Rotor Screwdriver
Shaft Style Shaftless
Series PTN10
