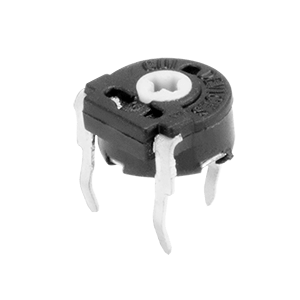

PTN06-D500CC20-H
6 mm, 500 kΩ, Vertical, Reverse Logarithmic, Cross Slot Shaftless Trimmer Potentiometer, 50% Wiper
Specifications
| Type | Description | |
|---|---|---|
| Potentiometer Type | Trimmer |
|
| Size (mm) | 6 |
|
| Termination | Crimped Pc Pins |
|
| Taper | Reverse Logarithmic |
|
| Orientation | Vertical |
|
| Resistance (kΩ) | 500 |
|
| Resistance Ω | 500 |
|
| Resistance Tolerance (%) | 20 |
|
| Bushing | No Bushing |
|
| Detent | No Detent |
|
| Mounting Type | Through Hole |
|
| Power (W) | 0.15 |
|
| Rotation (°) | 235 |
|
| Rotor | Cross Slot |
|
| Shaft Style | Shaftless |
|
| Series | PTN06 |
|
