PTN06-D10HB20

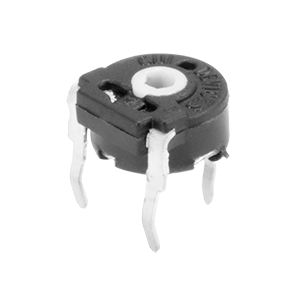

6 mm, 10 kΩ, Vertical, Linear, Hexagonal Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 6
Termination Crimped Pc Pins
Taper Linear
Orientation Vertical
Resistance (kΩ) 10
Resistance Ω 10
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 235
Rotor Hexagonal
Shaft Style Shaftless
Series PTN06
